TMRPres2D – High quality visual representation of transmembrane protein models



Version 0.91





User's manual




Ioannis C. Spyropoulos, Theodore D. Liakopoulos, Pantelis G. Bagos

and Stavros J. Hamodrakas



Department of Cell Biology and Biophysics, Faculty of Biology,
University of Athens, Panepistimiopolis, Athens 157 01, Greece
















The Application Workspace


The Application Workspace is divided into 3 parts[Illustration 1]:


Illustration 1) The main application interface consists of 3 areas. Area 'A' is the Menu Bar, area 'B' is the Tool Bar and area 'C' is the Representation Panel. This screenshot corresponds to printer-friendly output.










The Menu Bar


The Menu Bar is always visible and consists of three menus:




'File' menu


The 'File' menu provides various available methods of data input to the application. The 'Input' submenu includes 4 options, corresponding to different data sources:



Illustration 2) Window for loading a SwissProt entry from a local disc. The user has to locate and select a file of plain text containing the desired entry(e.g 14kd_dauca.sp), and press the 'Open' button.





Illustration 3) Input form for downloading a SwissProt entry from the web. After providing the ID or the Accession Number (eg ctr1_human) of the entry, the user can press 'OK' for download or 'Review entry' in order to transfer the entry into the text area form [Illustration 4]





































Illustration 4) Input form to paste an SwissProt entry in plain text. After pasting, the user should press the 'OK' button.




Illustration 5) Input form for downloading a PIR entry from the WEB. After providing the id (eg A53663) of the entry the user can press 'OK' for download.






Illustration 6) Input form to paste the PRED-TMR output. Finally, 'OK' button has to be pressed.

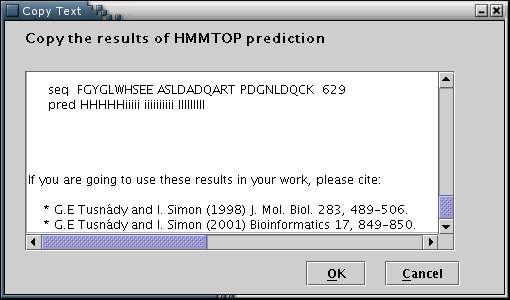

Illustration 7Input form for pasting the HMMTOP output. Finally, 'OK' button has to be pressed.






Illustration 8)Input forms for pasting the TMHMM output and the actual sequence. Finally, 'OK' button has to be pressed.

















Illustration 9Input form for pasting the PRED-TMBB output. Finally, 'OK' button has to be pressed.









User defined: Input may be provided by manually filling a special input form [Illustration 10]. The procedure consists of the following steps: You may optionally enter a name for the sequence. The sequence (required) should be entered in the appropriate text area, in plain text or FASTA format. When finished, you should press the 'Apply sequence' button.


Illustration 10) Input form for filling user defined protein sequence and transmembrane boundaries.





Consequently, another input area, should be activated [Illustration 11] You may define the transmembrane segments by specifying their boundaries, using the pull down menus provided, named 'From' and 'To'. A new segment should be added each time the 'Add new segment' button is pressed. You can remove the last segment by pressing the 'Remove segment' button once. For each transmembrane segment, a number on the left (colored blue) serves as an index, while a number on the right (colored green) shows its length.





Illustration 11) Input form for filling a user-defined protein sequence along with its transmembrane boundaries. By pressing the 'Clear' button, all input fields are reset. By pressing the 'OK' button, the provided data will be visualized.





'Export' menu


The 'Export' menu provides the option of saving an image/model of a protein using several vector-based formats, namely Encapsulcated PostScript(.eps), PostScript (.ps), Portable Document Format (.pdf) and Scalable Vector Graphics(.svg). Alternatively, pictures may be exported using the popular bitmap image formats JPEG and PNG.[Illustration 12]. This option is enabled only when an image is available.





Illustration 12) The export window, from the FreeHEP Java Library. From here one may select the desirable format and name of the output file or set some advanced options..






'About' menu


The 'About' menu contains information about the authors and copyright of the application.



The Tool Bar


The Tool Bar should appears after a protein has been loaded [Illustration 13]. It consists of the following elements:






Illustration 13The Tool Bar consists of several toggle buttons and a slider, that control the appearance of the output.



      With these changes, you can produce an image capable to be printed exactly as it appears on the screen. When the button is unpressed, the old appearance options and colors are restored.



Illustration 14) Symbols for additional sequenee data. A) Glycosylation site, Lipid binding, Post-translational modification.






Illustration 15)A symbolic bridge for representing a disulfide bond between two residues of cystein.





Illustration 16)This text box contains an annotation for a residue. The direction of the text box, in the above example, is 'bottom left'.





Illustration 17) The 3 potential states of a toggle button. Unselected, Selected and Disabled, respectively.


Each of the toggle buttons mentioned above, may appear in one of 3 potential states [Illustration 17]:






Illustration 17) The 3 potential states of a toggle button. Unselected, Selected and Disabled, respectively.






The Representation Panel


The Representation Panel should become visible after a protein has been loaded. It contains the actual image. The panel may hold several panes each one containing an image/model. You may switch between models by selecting the corresponding tab [Illustration 18].





Illustration 18) A view of the Representation Panel. By selecting a tab (eg YREP_BUCTS) from area A, the appropriate pane appears. The representation shown ('printer friendly' version), includes the most common appearance elements: The cellular topology (B), lipid bilayer (C), transmembrane segment boundaries (black numbers), sequence termini (D & E), transmembrane alpha-helices (F, G & H), non-transmembrane chains (loose loops).




Additional sequence features, namely signal peptides, post-translational modifications, glycosylation sites and lipid bindings can be handled from the Tool Bar [Illustration 13] and, whenever visible, are marked with special symbols [Illustration 14].


By pressing the pointer's right button while the representation area is focused, a pop-up menu appears [Illustration 19]. Several appearance options may be configured using this menu:



Illustration 19) Semi-expanded pop-up menu.












Illustration 20) Coloring by hydrophobic potential.








The hydrophobicity values assumed for the 20 aminoacid residue types are listed below:


Aminoacid

Hydrophobicity value

Phenylalanine (F)

0.804

Isoleucine (I)

0.734

Leucine (L)

0.612

Tryptophan (W)

0.582

Valine (V)

0.563

Methionine (M)

0.407

Alanine (A)

0.324

Cysteine (C)

0.184

Glycine (G)

0.147

Tyrosine (Y)

0.073

Threonine (T)

-0.129

Serine (S)

-0.216

Proline (P)

-0.516

Histidine (H)

-0.930

Asparagine (N)

-0.944

Glutamine (Q)

-1.300

Aspartic acid (D)

-1.877

Glutamic acid (E)

-2.033

Arginine (R)

-2.085

Lysine (K)

-2.23




The 'Background Color' submenu opens a window to choose the background color [Illustration 21].

Illustration 21) Window to choose a color for the background.




The 'Annotation' submenu opens the annotation input form [Illustration 22], from which residue annotations can be added. The desired residue can be selected from the pull-down list. The selection of any residue leads to the appearence of the annotation's message (if available), in the text area. Four radio buttons declare the direction of the box's depiction [Illustration 16]. Any modifications are applied when the 'Submit' button is pressed.



Illustration 22)Window containing the details for adding annotation for a residue.




By moving the pointer within the representation area while the pointer's left button is pressed, the user can move the image towards a desired direction.
